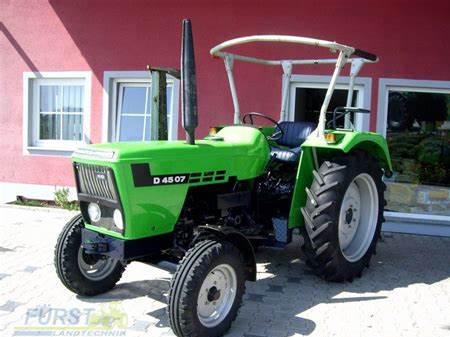

Deutz-Fahr D 4507 Tractors
|
|
Power: 40 hp
Date of manufacture : 1980 - 1990 |
Production |
Manufacturer: | Deutz-Fahr
|
Type: | Utility tractor
|
Deutz-Fahr D 4507 Power |
Engine: | 40 hp 29.8 kW
|
Drawbar (tested): | 35.47 hp 26.4 kW
|
PTO (tested): | 43.15 hp 32.2 kW
|
Mechanical |
Chassis: | 4x2 2WD
|
| 4x4 MFWD 4WD
|
Steering: | power
|
Brakes: | drum
|
Cab: | Four-post ROPS.
|
Transmission: | 8-speed
|
Hydraulics |
Type: | open center
|
Pump flow: | 9.2 gpm 34.8 lpm
|
Tractor hitch |
Rear lift: | 4189 lbs 1900 kg
|
Power Take-off (PTO) |
Rear RPM: | 540
|
Engine RPM: | 540@2070
|
Dimensions & Tires |
Wheelbase: | 81.10 inches 205 cm
|
Weight: | 4674 to 5247 pounds
|
Front tire: | 7.50-16
|
Rear tire: | 14.9-28
|
