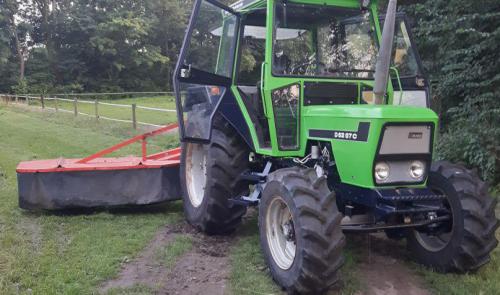

Deutz-Fahr D 5207 Tractors
|
|
Power: 51 hp
Date of manufacture : 1980 - 1984 |
Production |
Manufacturer: | Deutz-Fahr
|
Type: | Utility tractor
|
Deutz-Fahr D 5207 Power |
Engine: | 51 hp 38.0 kW
|
Mechanical |
Chassis: | 4x2 2WD
|
| 4x4 MFWD 4WD
|
Steering: | power
|
Brakes: | mechanical disc
|
Cab: | Four-post ROPS. Cab available with heat.
|
Transmission: | 8-speed synchronized
|
Photos |
| Deutz-Fahr D 5207 photos... |
Hydraulics |
Type: | open center
|
Pressure: | 2538 psi 175.0 bar
|
Pump flow: | 9.2 gpm 34.8 lpm
|
Tractor hitch |
Rear Type: | II/I
|
Control: | position and draft control
|
Rear lift: | 5300 lbs 2404 kg
|
Front Hitch: | I
|
Front lift: | 3372 lbs 1529 kg
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 540/1000
|
Front PTO: | independent
|
Front RPM: | 1000
|
Dimensions & Tires |
2WD Wheelbase: | 79.1 inches 200 cm
|
4WD Wheelbase: | 81.1 inches 205 cm
|
Weight: | 5952 to 6592 pounds
|
Front tire: | 7.50-16
|
2WD Rear tire: | 14.9-28
|
Full dimensions and tires ... | |
