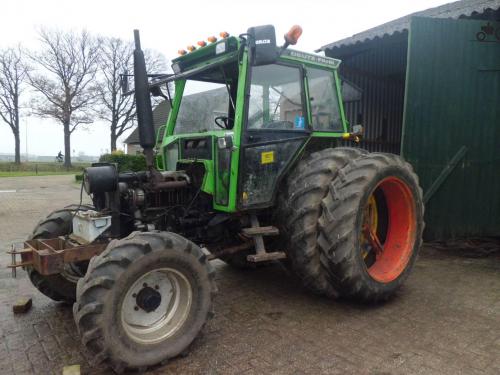

Deutz-Fahr D 6507 Tractors
 |
|
Power: 62 hp
Date of manufacture : 1982 - 1984 |
| Production |
| Manufacturer: | Deutz-Fahr
|
| Type: | Utility tractor
|
| Deutz-Fahr D 6507 Power |
| Engine: | 62 hp
46.2 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | mechanical disc
|
| Cab: | Four-post ROPS. Cab available with heat.
|
| Transmission: | 9-speed synchronized
|
| Photos |
| | Deutz-Fahr D 6507 photos... |
| Hydraulics |
| Type: | open center
|
| Pressure: | 2538 psi
175.0 bar
|
| Pump flow: | 10.6 gpm
40.1 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | position and draft control
|
| Rear lift: | 5300 lbs
2404 kg
|
| Front Hitch: | I
|
| Front lift: | 3372 lbs
1529 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Front PTO: | independent
|
| Front RPM: | 1000
|
| Dimensions & Tires |
| 2WD Wheelbase: | 84.3 inches
214 cm
|
| 4WD Wheelbase: | 86.2 inches
218 cm
|
| Weight: | 6349 to 7055 pounds
|
| Front tire: | 7.50-18
|
| 2WD Rear tire: | 16.9-30
|
| Full dimensions and tires ... | |
