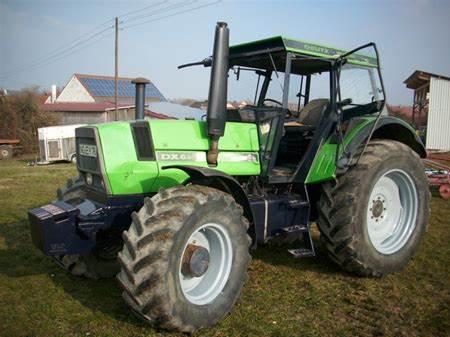

Deutz-Fahr DX 6.50 Tractors
 |
|
Power: 137 hp
Date of manufacture : 1983 - 1990 |
| Production |
| Manufacturer: | Deutz-Fahr
|
| Type: | Row-Crop tractor
|
| Deutz-Fahr DX 6.50 Power |
| Engine: | 137 hp
102.2 kW
|
| PTO (claimed): | 120 hp
89.5 kW
|
| Drawbar (tested): | 101.36 hp
75.6 kW
|
| PTO (tested): | 122.06 hp
91.0 kW
|
| Deutz-Fahr DX 6.50 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear
|
| | OPTITRAC front
|
| Steering: | power
|
| Brakes: | hydraulic dry disc
|
| Cab: | Mastercab standard with air-conditioning.
|
| Transmissions: | 24-speed two-speed power shift
|
| | 32-speed two-speed power shift
|
| Hydraulics |
| Type: | open center
|
| Pressure: | 2538 psi
175.0 bar
|
| Valves: | 1 to 3
|
| Pump flow: | 24 gpm
90.8 lpm
|
| Tractor hitch |
| Rear Type: | III
|
| Rear lift (at ends): | 14330 lbs
6500 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000 (1.375)
|
| Engine RPM: | 540@2192
1000@2214
|
| Front PTO: | independent
|
| Front RPM: | 1000
|
| Dimensions & Tires |
| 2WD Wheelbase: | 105.8 inches
268 cm
|
| 4WD Wheelbase: | 106.4 inches
270 cm
|
| Weight: | 11243 to 12081 pounds
|
| Front tire: | 11.00x16
|
| 2WD Rear tire: | 18.4x38
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Battery volts: | 12
|
|
