Navigation: Home > Deutz-Fahr > DX 6.30

Deutz-Fahr DX 6.30 Tractors

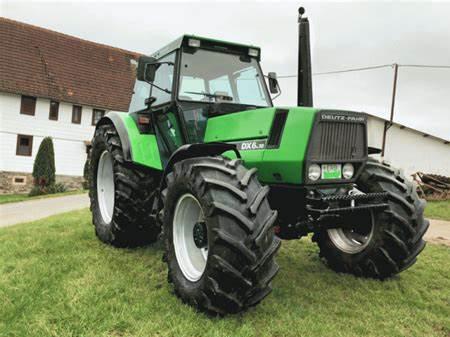

Deutz-Fahr DX 6.30
Power: 115 hp
Date of manufacture :
1983 - 1990
Production
Manufacturer:Deutz-Fahr
Type:Row-Crop tractor
Deutz-Fahr DX 6.30 Power
Engine:115 hp
85.8 kW
PTO (claimed):110 hp
82.0 kW
Deutz-Fahr DX 6.30 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:mechanical rear
 OPTITRAC front
Steering:power
Brakes:hydraulic dry disc
Cab:Mastercab standard with air-conditioning.
Transmissions:15-speed fully synchronized
 20-speed
Photos
Deutz-Fahr DX 6.30 photos...
Hydraulics
Type:open center
Pressure:2538 psi
175.0 bar
Valves:1 to 3
Pump flow:24 gpm
90.8 lpm
Tractor hitch
Rear Type:II
Rear lift (at ends):11243 lbs
5099 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000 (1.375)
Engine RPM:540@2200
1000@2200
Front PTO:independent
Front RPM:1000
Dimensions & Tires
2WD Wheelbase:105.8 inches
268 cm
4WD Wheelbase:106.4 inches
270 cm
Weight:9700 to 10670 pounds
Front tire:11.00x16
2WD Rear tire:18.4x38
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Battery volts:12
