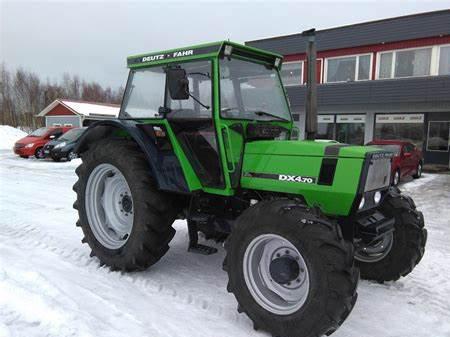

Deutz-Fahr DX 4.70 Tractors
 |
|
Power: 90 hp
Date of manufacture : 1983 - 1989 |
| Production |
| Manufacturer: | Deutz-Fahr
|
| Type: | Utility tractor
|
| Deutz-Fahr DX 4.70 Power |
| Engine: | 90 hp
67.1 kW
|
| PTO (claimed): | 84 hp
62.6 kW
|
| Drawbar (tested): | 73.23 hp
54.6 kW
|
| PTO (tested): | 85.18 hp
63.5 kW
|
| Deutz-Fahr DX 4.70 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear
|
| | OPTITRAC front
|
| Steering: | power
|
| Brakes: | hydraulic dry disc
|
| Cab: | Mastercab standard with air-conditioning.
|
| Transmissions: | 15-speed fully synchronized
|
| | 20-speed creeper
|
| Photos |
| | Deutz-Fahr DX 4.70 photos... |
| Hydraulics |
| Type: | open center
|
| Pressure: | 2538 psi
175.0 bar
|
| Valves: | 1 to 3
|
| Pump flow: | 19.6 gpm
74.2 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Rear lift (at ends): | 8377 lbs
3799 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000 (1.375)
|
| Engine RPM: | 540@2025
1000@2110
|
| Front PTO: | independent
|
| Front RPM: | 1000
|
| Dimensions & Tires |
| 2WD Wheelbase: | 92 inches
233 cm
|
| 4WD Wheelbase: | 94.5 inches
240 cm
|
| Weight: | 8466 to 9193 pounds
|
| Front tire: | 10.00x16
|
| 2WD Rear tire: | 18.4x34
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Battery volts: | 12
|
|
