Deutz-Fahr TTV 620 Tractors

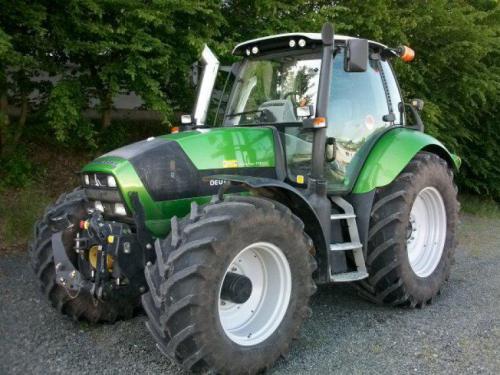

Deutz-Fahr TTV 620
Power: 165 hp
Date of manufacture :
2007 - 2012
Production
Manufacturer:Deutz-Fahr
Type:Row-Crop tractor
Deutz-Fahr TTV 620 Power
Engine (net):165 hp
123.0 kW
Deutz-Fahr TTV 620 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:automatic front and rear differential locks
Steering:power
Brakes:wet disc
Cab:Cab standard with air-conditioning. Mechical or pneumatic suspension optional.
Hydraulics
Type:load sensing
Valves:4
Pump flow:31.7 gpm
120.0 lpm
Steering flow:11.6 gpm
43.9 lpm
Tractor hitch
Rear Type:III/II
Control:position and draft control
Rear lift:20282.5 lbs
9200 kg
Front Hitch:III/II*Optional.
Front lift:8818.5 lbs
4000 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic wet disc
Rear RPM:540/540E/1000/1000E*35mm shaft with 6 or 21 splines.
Engine RPM:540@1946
540E@1645
1000@1946
1000E@1645
Front PTO:independent
Clutch:electro-hydraulic wet disc
Front RPM:1000*35mm 6-spline shaft
Engine RPM:1000@1960
Dimensions & Tires
Weight:14385 lbs
6525 kg
Front tire:480/70R28
Rear tire:580/70R38
Full dimensions and tires ...
Electrical
Charging system:alternator
Charging amps:200
Battery volts:12
Battery AH:190
