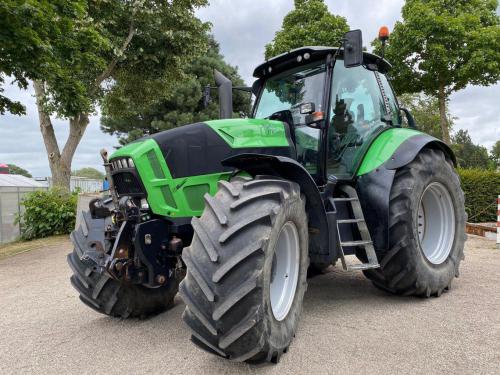

Deutz-Fahr TTV 630 Tractors
 |
|
Power: 203 hp
Date of manufacture : 2008 - 2011 |
| Production |
| Manufacturer: | Deutz-Fahr
|
| Type: | Row-Crop tractor
|
| Deutz-Fahr TTV 630 Power |
| Engine (net): | 203 hp
151.4 kW
|
| Deutz-Fahr TTV 630 Engine |
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | automatic front and rear differential locks
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Cab standard with air-conditioning. Mechical or semi-active pneumatic suspension optional.
|
| Hydraulics |
| Type: | load sensing
|
| Valves: | 4 to 7
|
| Pump flow: | 29.1 gpm
110.1 lpm
|
| | 42.3 gpm
160.1 lpm *Optional.
|
| Steering flow: | 11.6 gpm
43.9 lpm
|
| Tractor hitch |
| Rear Type: | III/II
|
| Control: | position and draft control
|
| Rear lift: | 22046 lbs
10000 kg
|
| Front Hitch: | III/II*Optional.
|
| Front lift: | 9920.8 lbs
4500 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic wet disc
|
| Rear RPM: | 540/540E/1000/1000E*35mm shaft with 6 or 21 splines.
|
| Engine RPM: | 540@1946
540E@1645
1000@1946
1000E@1645
|
| Front PTO: | independent
|
| Clutch: | electro-hydraulic wet disc
|
| Front RPM: | 1000*35mm 6-spline shaft
|
| Engine RPM: | 1000@1960
1000E@1600
|
| Dimensions & Tires |
| Wheelbase: | 110.9 inches
281 cm
|
| Weight: | 15930 lbs
7225 kg
|
| Front tire: | 480/70R30
|
| Rear tire: | 580/70R42
|
| Full dimensions and tires ... |
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 200
|
| Battery volts: | 12
|
| Battery AH: | 190
|
|
