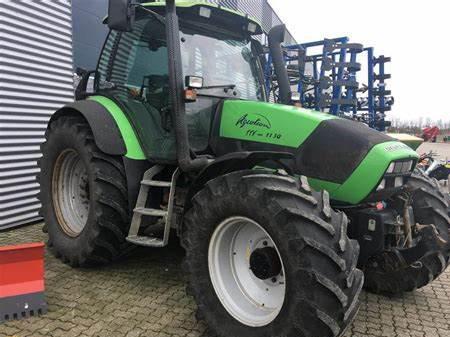

Deutz-Fahr TTV 1130 Tractors
 |
|
Power: 125 hp
Date of manufacture : 2001 - 2006 |
| Production |
| Manufacturer: | Deutz-Fahr
|
| Deutz-Fahr TTV 1130 Power |
| Engine: | 125 hp
93.2 kW
|
| Deutz-Fahr TTV 1130 Engine |
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Cab standard with air-condtioning.
|
| Transmission: | infinitely variable transmission
|
| Hydraulics |
| Pump flow: | 31.7 gpm
120.0 lpm
|
| Tractor hitch |
| Rear Type: | III/II
|
| Rear lift: | 15964 lbs
7241 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/750/1000/1250
|
| Dimensions & Tires |
| Wheelbase: | 109.1 inches
277 cm
|
| Weight: | 13781 lbs
6251 kg
|
| Front tire: | 480/70R30
|
| Rear tire: | 20.8R38
|
| Full dimensions and tires ... |
| Electrical |
| Charging system: | alternator
|
|
