Deutz-Fahr X710 Tractors

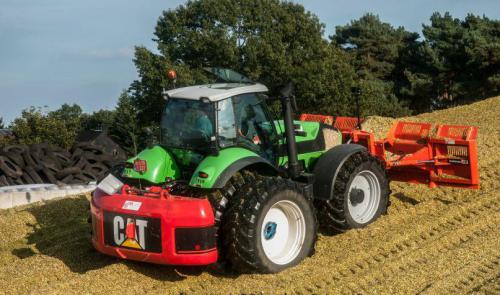

Deutz-Fahr X710
Power: 215 hp
Date of manufacture :
2006 - 2012
Production
Manufacturer:Deutz-Fahr
Type:Row-Crop tractor
Deutz-Fahr X710 Power
Engine (gross):215.9 hp
161.0 kW
Engine (max):246.7 hp
184.0 kW
Deutz-Fahr X710 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Cab standard with air-conditioning.
Transmission:40-speed
Hydraulics
Type:load sensing
Pressure:2901 psi
200.0 bar
Pump flow:31.7 gpm
120.0 lpm
Steering flow:15.1 gpm
57.2 lpm
Steering press.:2683 psi
185.0 bar
Tractor hitch
Rear Type:III
Rear lift:23150 lbs
10500 kg
Front Hitch:II
Front lift:11020 lbs
4998 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic
Rear RPM:540E/1000
Front PTO:independent
Clutch:electro-hydraulic
Front RPM:1000
Dimensions & Tires
Wheelbase:121.9 inches
309 cm
Weight:23005 lbs
10435 kg
Front tire:520/70R34
Rear tire:710/70R42
Full dimensions and tires ...
Electrical
Charging system:alternator
Charging amps:200
Battery volts:12
Battery AH:180
