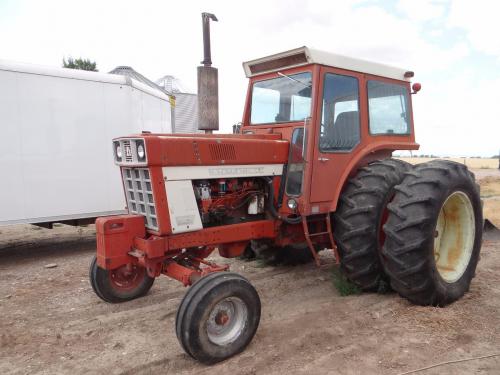

Farmall Hydro 100 Tractors
 |
|
Power: 115 hp[P]
Date of manufacture : 1973 - 1976 |
| Production |
| Manufacturer: | Farmall (a part of International Harvester)
|
| Type: | Row-Crop tractor
|
| Original price: | $21,700 (1976)
|
| Farmall Hydro 100 Power |
| Drawbar (claimed): | 80 hp
59.7 kW
|
| PTO (claimed): | 104.17 hp
77.7 kW
|
| Drawbar (tested): | 78.31 hp
58.4 kW
|
| PTO (tested): | 104.17 hp
77.7 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | hydrostatic power
|
| Brakes: | differential hydraulic dry disc
|
| Cab: | Open operator station. Two-post ROPS and cab available.
|
| Transmission: | hydrostatic
|
| Hydraulics |
| Pump flow: | 12 gpm
45.4 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Power Take-off (PTO) |
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 104.8 inches
266 cm
|
| Weight: | 12,130 lbs
5502 kg
|
| Front tire: | 10.00-16
|
| Rear tire: | 18.4-34
|
| Full dimensions and tires ... |
| Hydro 100 Serial Numbers |
| Location: | Hydro drive housing, left side
|
| 1973: | 7501
|
| 1974: | 7727
|
| 1975: | 10915
|
| 1976: | 12434
|
how to read serial numbers...
| |
