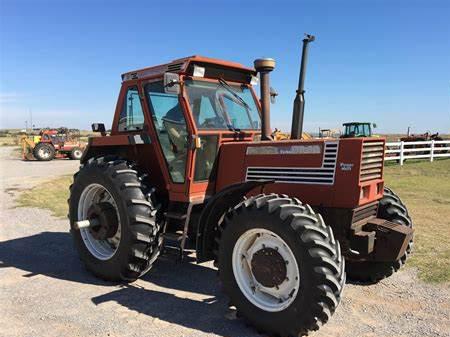

Fiat-Hesston 130-90 Tractors

Fiat-Hesston 130-90
Power: 118 hp
Date of manufacture :
1985 - 1990
Production
Distributor:Hesston
Manufacturer:Fiat
Type:Row-Crop tractor
Original price:$51,000 (1990 )
Variants
130-90:2WD
130-90DT:4WD
Hesston 130-90 Power
PTO (claimed):107 hp
79.8 kW
Drawbar (tested):90.47 hp
67.5 kW
PTO (tested):107.48 hp
80.1 kW
Hesston 130-90 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD (130-90DT)
Steering:power
Brakes:hydraulic disc
Cab:Supercomfort cab standard with air conditioning
Transmissions:16-speed synchronized
 24-speed creeper
 16-speed partial power shift
Hydraulics
Pressure:2450 psi
168.9 bar
Valves:3
Pump flow:13.4 gpm
50.7 lpm
Tractor hitch
Rear Type:II
 II/III*Optional
Rear lift:7042 lbs
3194 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
Dimensions & Tires
2WD Wheelbase:108.25 inches
274 cm
4WD Wheelbase:105.25 inches
267 cm
Weight:11800 to 14240 pounds
Front tire:11.00-16
Rear tire:18.4-38
Full dimensions and tires ...
Electrical
Charging system:alternator
Charging amps:65
Battery volts:12
