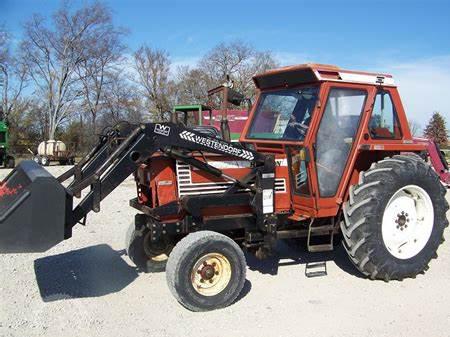

Fiat-Hesston 100-90 Tractors

Fiat-Hesston 100-90
Power: 100 hp
Date of manufacture :
0000 - 0000
Production
Distributor:Hesston
Manufacturer:Fiat
Type:Row-Crop tractor
Original price:$39,500 (1990 )
Hesston 100-90 Power
Engine:100 hp
74.6 kW
Drawbar (claimed):78 hp
58.2 kW
PTO (claimed):91.5 hp
68.2 kW
Drawbar (tested):77.98 hp
58.1 kW
PTO (tested):91.52 hp
68.2 kW
Hesston 100-90 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Transmissions:15-speed
 20-speed
Hydraulics
Type:open center
Valves:2
Pump flow:11.6 gpm
43.9 lpm
Tractor hitch
Rear Type:II
Rear lift:5,852 lbs
2654 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:101.3 inches
257 cm
Weight:9,540 lbs
4327 kg
Front tire:10.00-16
Rear tire:18.4-34
Full dimensions and tires ...
