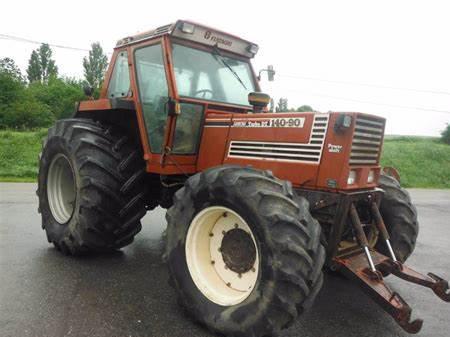

Fiat-Hesston 140-90 Tractors

Fiat-Hesston 140-90
Power: 136 hp
Date of manufacture :
1985 - 1991
Production
Distributor:Hesston
Manufacturer:Fiat
Type:Row-Crop tractor
Original price:$55,500 (1990 )
Variants
140-90:2WD
140-90DT:4WD
Hesston 140-90 Power
PTO (claimed):123 hp
91.7 kW
Drawbar (tested):105.52 hp
78.7 kW
PTO (tested):123.35 hp
92.0 kW
Hesston 140-90 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Brakes:differential hydraulic wet disc
Cab:Supercomfort cab standard with air conditioning
Transmissions:16-speed synchronized
 24-speed creeper
 16-speed partial power shift
Hydraulics
Pressure:2450 psi
168.9 bar
Valves:3
Pump flow:13.4 gpm
50.7 lpm
Tractor hitch
Rear Type:II
 II/III*Optional
Rear lift:9750 lbs
4422 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
Dimensions & Tires
2WD Wheelbase:108.25 inches
274 cm
4WD Wheelbase:105.25 inches
267 cm
Weight:12015 to 14565 pounds
Front tire:11.00-16
Rear tire:18.4-38
Full dimensions and tires ...
Electrical
Charging system:alternator
Charging amps:65
