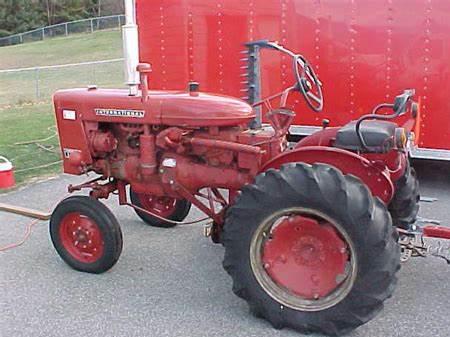

International Harvester 140 Tractors
 |
|
Power: 28 hp
Date of manufacture : 1958 - 1979 |
| Production |
| Manufacturer: | International Harvester
|
| Total built: | 66,290
|
| Original price: | $8,200 (1979 )
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual worm-and-sector
|
| Brakes: | differential mechanical contracting band
|
| Cab: | Open operator station.
|
| Transmission: | 4-speed sliding gear
|
| Photos |
| | International Harvester 140 photos... |
| Capacity |
| Fuel: | 11 gal
41.6 L
|
| Hydraulic system: | 3.38 gal
12.8 L
|
| Hydraulics |
| Type: | IH Touch-Control
|
| Capacity: | 3.38 gal
12.8 L
|
| Total flow: | 4.6 gpm
17.4 lpm
|
| Tractor hitch |
| Type: | IH Fast Hitch (one-point)
|
| Power Take-off (PTO) |
| Rear PTO: | transmission
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 71 inches
180 cm
|
| Weight: | 2700 to 3000 pounds
|
| Front tire: | 5.00-15
|
| Rear tire: | 9.5-24
|
| 140 Serial Numbers |
| Location: | Serial number plate on the left side of the tractor, on the clutch housing.
|
| 1958: | 501
|
| 1959: | 2011
|
| 1960: | 8082
|
| 1961: | 11168
|
| 1962: | 16637
|
| 1963: | 21181
|
| 1964: | 25387
|
| 1965: | 28408
|
| 1966: | 31285
|
| 1967: | 34818
|
| 1968: | 37352
|
| 1969: | 39906
|
| 1970: | 42300
|
| 1971: | 44424
|
| 1972: | 46605
|
| 1973: | 48507
|
| 1974: | 50720
|
| 1975: | 54273
|
| 1976: | 57773
|
| 1977: | 60839
|
| 1978: | 63111
|
| 1979: | 64544
|
how to read serial numbers...
|
| Electrical |
| Ground: | positive (6V)
|
| | negative (12V)
|
| Charging system: | generator (early)
|
| | alternator (late)
|
| Battery volts: | 6 (early)
|
| | 12 (late)
|
|
