Navigation: Home > International Harvester > 184 Lo-Boy

International Harvester 184 Lo-Boy Tractors

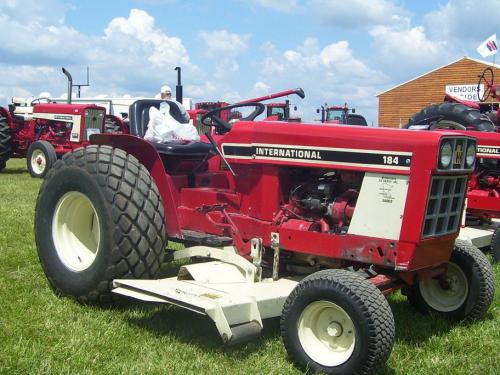

International Harvester 184 Lo-Boy
Power: 18 hp
Date of manufacture :
1977 - 1980
Production
Manufacturer:International Harvester
Type:Compact Utility tractor
Factory:Louisville, Kentucky, USA
Original price:$4,200 (1980)
International Harvester 184 Lo-Boy Power
Engine:18 hp
13.4 kW
PTO (claimed):11 hp
8.2 kW
International Harvester 184 Lo-Boy Engine
Mechanical
Chassis:4x2 2WD
Steering:manual
Brakes:mechanical drum
Cab:Open operator station.
Transmissions:3-speed unsynchronized gear
 6-speed creeper
Photos
International Harvester 184 Lo-Boy photos...
Capacity
Fuel:8 gal
30.3 L
Hydraulic system:1.75 gal
6.6 L
Hydraulics
Type:gear pump
Capacity:1.75 gal
6.6 L
Pressure:2000 psi
137.9 bar
Pump flow:2 gpm
7.6 lpm
Tractor hitch
Rear Type:I (optional)
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-magnetic
Rear RPM:1600 (counter-clockwise)
Dimensions & Tires
Wheelbase:64 inches
162 cm
Weight:1620 lbs
734 kg
Front tire:4.00-12
Rear tire:8.3-24
184 Lo-Boy Serial Numbers
Location:Serial number plate on the left side of the tractor, above the foot rest.
photo of 184 Lo-Boy serial number

1977:43802
1978:46163
1979:48030
Final:52339

how to read serial numbers...

Electrical
Ground:negative
Charging amps:37
 42
Battery volts:12
