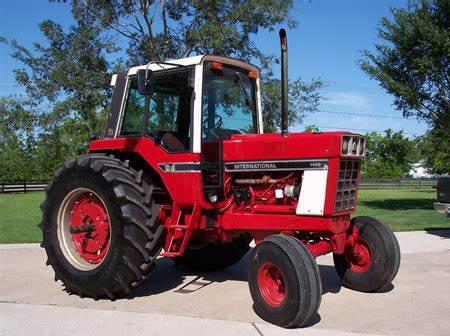

International Harvester 1486 Tractors
 |
|
Power: 162 hp[P]
Date of manufacture : 1976 - 1981 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Row-Crop tractor
|
| Factory: | Rock Island, Illinois, USA
|
| Total built: | 21,117
|
| Original price: | $38,400 (1981 )
|
| International Harvester 1486 Power |
| Drawbar (claimed): | 126 hp
94.0 kW
|
| PTO (claimed): | 146 hp
108.9 kW
|
| Drawbar (tested): | 123.20 hp
91.9 kW
|
| PTO (tested): | 145.77 hp
108.7 kW
|
| International Harvester 1486 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power assist
|
| Brakes: | hydraulic disc
|
| Cab: | Cab standard.
|
| Transmission: | 16-speed
|
| Photos |
| | International Harvester 1486 photos... |
| Capacity |
| Fuel: | 63 gal
238.5 L
|
| | 22 gal
83.3 L (auxiliary)
|
| Hydraulic system: | 22.5 gal
85.2 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 22.5 gal
85.2 L
|
| Valves: | 2
|
| Pump flow: | 12 gpm
45.4 lpm
|
| Tractor hitch |
| Rear Type: | III
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 105 inches
266 cm (wide-tread front)
|
| | 101 inches
256 cm (tricycle front)
|
| | 99 inches
251 cm (4WD)
|
| Weight: | 12500 to 13670 pounds
|
| Front tire: | 11.00-16
|
| Rear tire: | 18.4-38
|
| Full dimensions and tires ... |
| 1486 Serial Numbers |
| Location: | Frame, right side ahead of the rear axle.
|
photo of 1486 serial number
| | 1976: | 8601
|
| 1977: | 9798
|
| 1978: | 14851
|
| 1979: | 18774
|
| 1980: | 23162
|
| 1981: | 27426
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 42
|
| | 61*High-output alternator with cab.
|
| Batteries: | 2
|
| Battery CCA: | 470
|
| Battery volts: | 12
|
|
