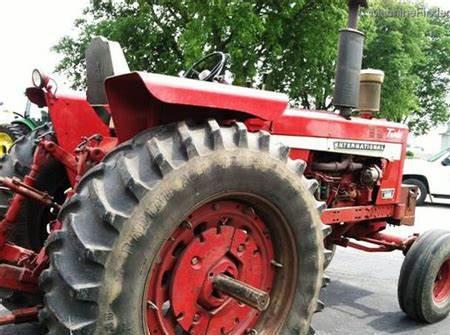

International Harvester 1456 Tractors
 |
|
Power: 144 hp[P]
Date of manufacture : 1969 - 1971 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Standard-tread tractor
|
| Total built: | 294 (IH/wheatland)
|
| | 5,592 (Farmall/row-crop)
|
| Original price: | $12,400 (1971)
|
| Variants |
| IH 1456: | standard-tread
|
| Farmall 1456: | row-crop
|
| International Harvester 1456 Power |
| PTO (claimed): | 130 hp
96.9 kW
|
| Drawbar (tested): | 114.69 hp
85.5 kW
|
| PTO (tested): | 131.1 hp
97.8 kW
|
| International Harvester 1456 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD optional
|
| Steering: | hydrostatic power
|
| Brakes: | independent hydraulic dry disc
|
| Cab: | Cab optional with heat and A/C
|
| Transmissions: | 8-speed
|
| | 16-speed partial power shift
|
| Hydraulics |
| Pump flow: | 12 gpm
45.4 lpm
|
| Tractor hitch |
| Rear Type: | 3/2
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 105 inches
266 cm
|
| Weight: | 12,800 lbs
5806 kg
|
| Front tire: | 11L-15
|
| Rear tire: | 18.4-38
|
| Full dimensions and tires ... |
| 1456 Serial Numbers |
| Location: | Clutch housing, right side
|
| 1969: | 1001 (IH)
|
| 1970: | 10025 (IH)
|
| 1971: | 10249 (IH)
|
| 1969: | 10001 (Farmall)
|
| 1970: | 10405 (Farmall)
|
| 1971: | 14149 (Farmall)
|
how to read serial numbers...
| |
