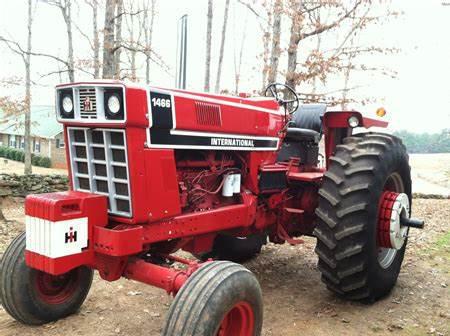

International Harvester 1466 Tractors
 |
|
Power: 147 hp[P]
Date of manufacture : 1971 - 1976 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Row-Crop tractor
|
| Total built: | 25,264
|
| Original price: | $23,600 (1976)
|
| International Harvester 1466 Power |
| PTO (claimed): | 133 hp
99.2 kW
|
| Drawbar (tested): | 123.20 hp
91.9 kW
|
| PTO (tested): | 145.77 hp
108.7 kW
|
| International Harvester 1466 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | independent hydrostatic dry disc
|
| Cab: | Cab optional with heat and A/C
|
| Transmissions: | 8-speed
|
| | 16-speed
|
| Photos |
| | International Harvester 1466 photos... |
| Capacity |
| Fuel: | 42 gal
159.0 L
|
| Hydraulic system: | 22 gal
83.3 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 22 gal
83.3 L
|
| Pressure: | 2000 psi
137.9 bar
|
| Valves: | 1
|
| Pump flow: | 12 gpm
45.4 lpm
|
| Total flow: | 24 gpm
90.8 lpm
|
| Steering flow: | 9 gpm
34.1 lpm
|
| Steering press.: | 1550 psi
106.9 bar
|
| Tractor hitch |
| Rear Type: | 3/2
|
| Rear lift (at 24"/610mm): | 5,600 lbs
2540 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 105 inches
266 cm
|
| Weight: | 13,480 lbs
6114 kg
|
| Front tire: | 11L-15
|
| Rear tire: | 18.4-38
|
| Full dimensions and tires ... |
| 1466 Serial Numbers |
| Location: | Clutch housing, left side
|
| 1971: | 7101
|
| 1972: | 10408
|
| 1973: | 15533
|
| 1974: | 19746
|
| 1975: | 25404
|
| 1976: | 29516
|
how to read serial numbers...
|
| Electrical |
| Charging amps: | 32
|
| Batteries: | 2
|
| Battery volts: | 6
|
| Battery AH: | 172
|
|
