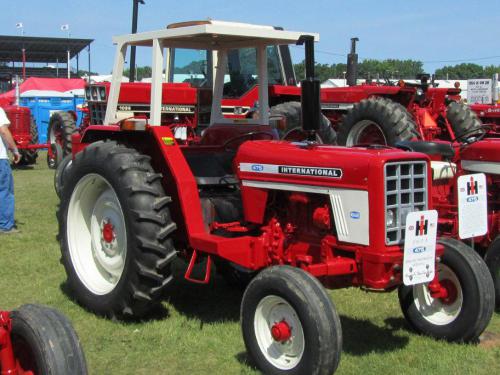

International Harvester 475 Tractors
 |
|
Power: 60 hp
Date of manufacture : 1974 - 1977 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Utility tractor
|
| Factory: | Doncaster, England
|
| International Harvester 475 Power |
| Engine: | 60 hp
44.7 kW
|
| PTO (claimed): | 49 hp
36.5 kW
|
| International Harvester 475 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Final drives: | planetary
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Open operator station. Four-post ROPS and cab available.
|
| Transmissions: | 8-speed partially synchronized
|
| | 16-speed two-speed power shift
|
| Photos |
| | International Harvester 475 photos... |
| Hydraulics |
| Pump flow: | 11.9 gpm
45.0 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Control: | position and draft control
|
| Rear lift: | 3969 lbs
1800 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | hydraulic wet disc
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 84.5 inches
214 cm
|
| Weight: | 5733 lbs
2600 kg
|
| Front tire: | 6.00-16
|
| Rear tire: | 12.4/11-36
|
| Full dimensions and tires ... |
| 475 Serial Numbers |
| Location: | Front-right axle support.
|
photo of 475 serial number
|
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 28
|
| Battery volts: | 12
|
| Battery AH: | 95
|
|
