International Harvester 484 Tractors
 |
|
Power: 50 hp
Date of manufacture : 1977 - 1982 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Utility tractor
|
| Factory: | Doncaster, England
|
| Original price: | $11,800 (1984 )
|
| International Harvester 484 Power |
| Engine: | 50 hp
37.3 kW
|
| Drawbar (claimed): | 38 hp
28.3 kW
|
| PTO (claimed): | 42.4 hp
31.6 kW
|
| Drawbar (tested): | 36 hp
26.8 kW
|
| PTO (tested): | 42.42 hp
31.6 kW
|
| International Harvester 484 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | power
|
| Brakes: | independent hydraulic wet disc
|
| Cab: | Two-post fixed ROPS. Canopy optional.
|
| Transmission: | 8-speed syncromesh
|

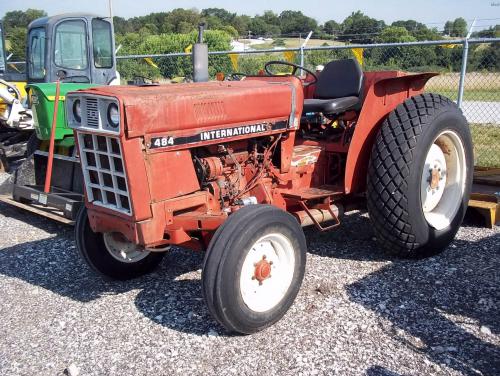

| Photos |
| | International Harvester 484 photos... |
| Capacity |
| Fuel: | 20 gal
75.7 L
|
| Hydraulic system: | 9 gal
34.1 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 9 gal
34.1 L
|
| Valves: | 0 to 2
|
| Total flow: | 15.4 gpm
58.3 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | position and draft control
|
| Rear lift: | 3100 lbs
1406 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | hydraulic wet disc
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| Utility Wheelbase: | 79 inches
200 cm
|
| Low-profile Wheelbase: | 78.25 inches
198 cm
|
| Weight: | 5140 to 5200 pounds
|
| Front tire: | 6.00-16
|
| Rear tire: | 13.6-28
|
| Full dimensions and tires ... |
| 484 Serial Numbers |
| 1978: | 501
|
| 1979: | 1325
|
| 1980: | 2754
|
| 1981: | 5619
|
| 1982: | unk
|
| 1983: | unk
|
| 1984: | 9165
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
