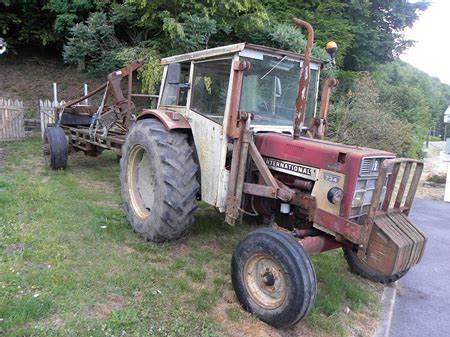

International Harvester 734 Tractors
|
|
Power: 73 hp
Date of manufacture : 1972 - 1974 |
Production |
Manufacturer: | International Harvester
|
Type: | Row-Crop tractor
|
International Harvester 734 Power |
Engine (gross): | 73 hp 54.4 kW
|
Engine (net): | 66.1 hp 49.3 kW
|
PTO (claimed): | 61.7 hp 46.0 kW
|
International Harvester 734 Engine |
Mechanical |
Chassis: | 4x2 2WD
|
| 4x4 MFWD 4WD
|
Final drives: | planetary
|
Differential lock: | mechanical rear
|
Steering: | manual
|
Steering: | power
|
Brakes: | disc
|
Cab: | Cab standard with optional heater.
|
Transmissions: | 8-speed
|
| 12-speed
|
Tractor hitch |
Rear Type: | II
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 540/1000
|
Dimensions & Tires |
Wheelbase: | 83.5 inches 212 cm
|
Weight: | 7477 to 8245 pounds
|
Front tire: | 7.50x16
|
2WD Rear tire: | 16.9/14x34
|
Full dimensions and tires ... | |
