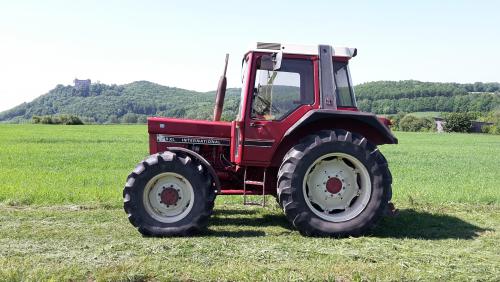

International Harvester 745 Tractors

International Harvester 745
Power: 72 hp
Date of manufacture :
1980 - 1989
Production
Manufacturer:International Harvester
Factory:Neuss, Germany
Variants
745S:ROPS
745XL:Cab
International Harvester 745 Power
Engine:72 hp
53.7 kW
International Harvester 745 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Cab:Four-post ROPS. Cab with heat on 745 XL.
Transmissions:16-speed two-speed power shift
 8-speed gear
 16-speed creeper
Hydraulics
Pump flow:7.9 gpm
29.9 lpm
Tractor hitch
Rear Type:II
Control:position and lower-link draft control.
Rear lift:6945 lbs
3150 kg
Power Take-off (PTO)
Rear PTO:live
Rear RPM:540
 540/1000*Optional
Dimensions & Tires
2WD Wheelbase:87.6 inches
222 cm
4WD Wheelbase:86.2 inches
218 cm
Weight:6724 to 8422 pounds
Front tire:7.50-18
2WD Rear tire:16.9R34
Full dimensions and tires ...
Electrical
Charging system:alternator
Charging amps:33
Battery volts:12
Battery AH:88
