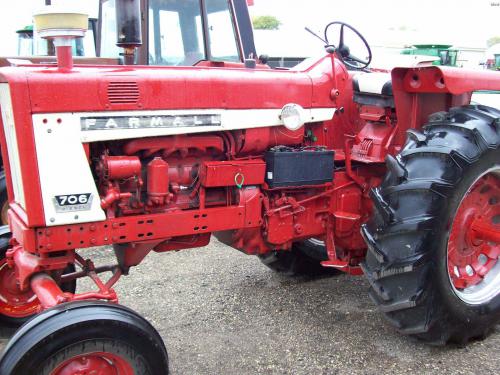

International Harvester 706 Tractors
 |
|
Power: 80 hp[P]
Date of manufacture : 1963 - 1967 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Standard-tread tractor
|
| Total built: | 5,487
|
| Original price: | $6,100 (1967)
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD (optional)
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic disc
|
| Cab: | Cab optional, A/C available starting in 1966
|
| Transmissions: | 8-speed
|
| | 16-speed
|
| Capacity |
| Fuel: | 33 gal
124.9 L (gas/diesel)
|
| | 39 gal
147.6 L (LP gas)
|
| Hydraulic system: | 17 gal
64.3 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 17 gal
64.3 L
|
| Valves: | 1 or 2
|
| Pump flow: | 12 gpm
45.4 lpm
|
| | 17 gpm
64.3 lpm (optional)
|
| Total flow: | 24 gpm
90.8 lpm
|
| Steering flow: | 9 gpm
34.1 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Control: | torsion bar (optional)
|
| Type: | IH Fast Hitch
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 87.5 inches
222 cm (2WD)
|
| | 87 inches
220 cm (4WD)
|
| Weight: | 8100 to 9160 pounds
|
| Front tire: | 7.50-18
|
| Rear tire: | 18.4-30
|
| Full dimensions and tires ... |
| 706 Serial Numbers |
| Location: | Tractor's clutch housing on left side
|
photo of 706 serial number
| | 1963: | 501 (IH)
|
| 1964: | 1251 (IH)
|
| 1965: | 3478 (IH)
|
| 1966: | 4789 (IH)
|
| 1967: | 5316 (IH)
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 11 inches
27 cm
|
| Width: | 7.5 inches
19 cm
|
| RPM: | 1055
|
| Speed: | 3,038 ft/min
925.98 meters/min
|
| Electrical |
| Ground: | negative
|
| Charging amps: | 25 (generator)
|
| | 32 (alternator)
|
| Batteries: | 1 (gas)
|
| | 2 (diesel)
|
| Battery volts: | 12 (gas)
|
| | 6 (diesel)
|
|
