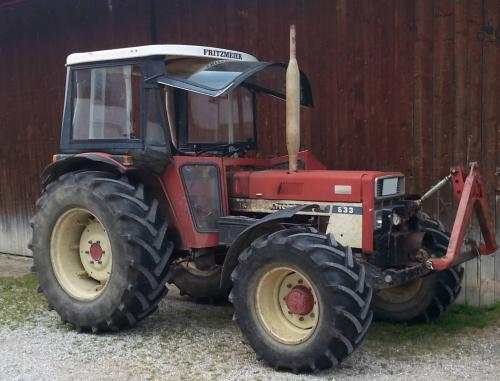

International Harvester 833 Tractors
 |
|
Power: 67 hp
Date of manufacture : 1981 - 1990 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Utility tractor
|
| Factory: | Neuss, Germany
|
| Variants |
| 833: | utility
|
| 833E: | narrow
|
| International Harvester 833 Power |
| Engine: | 67 hp
50.0 kW
|
| International Harvester 833 Engine |
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Transmissions: | 8-speed
|
| | 16-speed
|
| | 16-speed creeper
|
| Capacity |
| Fuel: | 17.2 gal
65.1 L
|
| Hydraulic system: | 3.2 gal
12.1 L
|
| Hydraulics |
| Capacity: | 3.2 gal
12.1 L
|
| Pressure: | 2538 psi
175.0 bar
|
| Pump flow: | 15.85 gpm
60.0 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | position control and upper-link draft sensing
|
| Rear lift: | 4851 lbs
2200 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 84.65 inches
215 cm
|
| Weight: | 6426 lbs
2914 kg
|
| Front tire: | 10.5-18
|
| Rear tire: | 14.9R30
|
| Full dimensions and tires ... |
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 33
|
| Battery volts: | 12
|
|
