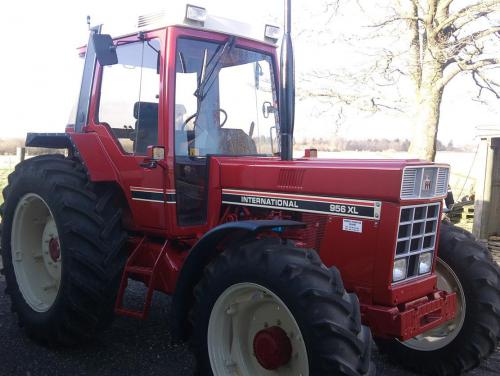

International Harvester 956 Tractors
 |
|
Power: 95 hp
Date of manufacture : 1982 - 1985 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Row-Crop tractor
|
| Factory: | Neuss, Germany
|
| Variants |
| 956XL: | deluxe cab
|
| International Harvester 956 Power |
| Engine (net): | 95 hp
70.8 kW
|
| PTO (claimed): | 91 hp
67.9 kW
|
| International Harvester 956 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Final drives: | planetary
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Cab: | Four-post ROPS. Standard cab and deluxe XL cab optional.
|
| Transmission: | 16-speed two-speed power shift
|
| Capacity |
| Fuel: | 37 gal
140.0 L
|
| Hydraulic system: | 12.2 gal
46.2 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 12.2 gal
46.2 L
|
| Pressure: | 2346 psi
161.8 bar
|
| Pump flow: | 11.1 gpm
42.0 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | position and draft control
|
| Rear lift (at ends): | 9171 lbs
4159 kg
|
| | 11023 lbs
5000 kg *Optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | 310mm dry disc
|
| Rear RPM: | 540/1000
|
| Engine RPM: | 540@1920
1000@2000
|
| Dimensions & Tires |
| 2WD Wheelbase: | 103.4 inches
262 cm
|
| 4WD Wheelbase: | 101.9 inches
258 cm
|
| Weight: | 9458 to 10538 pounds
|
| Front tire: | 10.00-16
|
| 2WD Rear tire: | 16.9R38
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 55
|
| Battery volts: | 12
|
| Battery AH: | 110
|
|
