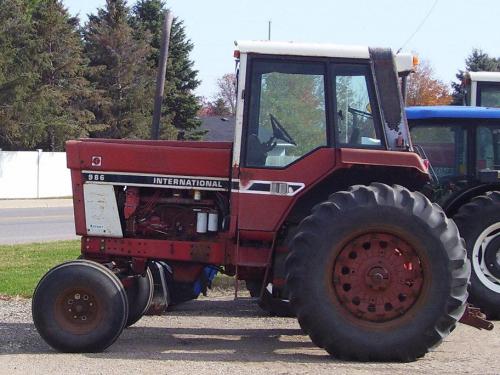

International Harvester 986 Tractors
 |
|
Power: 117 hp[P]
Date of manufacture : 1976 - 1981 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Row-Crop tractor
|
| Factory: | Rock Island, Illinois, USA
|
| Total built: | 20,554
|
| Original price: | $31,100 (1981)
|
| Variants |
| 986 Hi-Clear: | high clearance
|
| International Harvester 986 Power |
| Drawbar (tested): | 90.15 hp
67.2 kW
|
| PTO (tested): | 105.68 hp
78.8 kW
|
| International Harvester 986 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD (optional)
|
| Steering: | power assist
|
| Brakes: | hydraulic disc
|
| Cab: | Cab standard
|
| Transmission: | 16-speed
|
| Photos |
| | International Harvester 986 photos... |
| Capacity |
| Fuel: | 50 gal
189.3 L
|
| | 22 gal
83.3 L (auxiliary tank)
|
| Hydraulic system: | 22.5 gal
85.2 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 22.5 gal
85.2 L
|
| Valves: | 2
|
| Tractor hitch |
| Rear Type: | 2
|
| Rear lift (at 24"/610mm): | 5760 lbs
2612 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 105 inches
266 cm (wide-front)
|
| | 101 inches
256 cm (tricycle)
|
| | 99 inches
251 cm (4WD)
|
| | 106 inches
269 cm (Hi-Clear)
|
| Weight: | 10500 to 13030 pounds
|
| Front tire: | 10.00-16
|
| Rear tire: | 18.4-38
|
| Full dimensions and tires ... |
| 986 Serial Numbers |
| Location: | Rear frame, right side in front of rear axle.
|
photo of 986 serial number
| | 1976: | 8601
|
| 1977: | 11145
|
| 1978: | 15624
|
| 1979: | 19288
|
| 1980: | 22696
|
| 1981: | 25220
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 42
|
| | 61 (with cab)
|
| Batteries: | 2
|
| Battery CCA: | 470
|
| Battery volts: | 12
|
|
