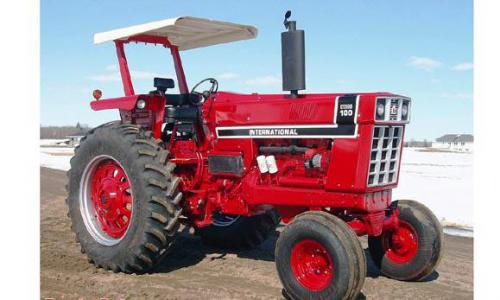

International Harvester Hydro 100 Tractors
|
|
Power: 115 hp[P]
Date of manufacture : 1973 - 1976 |
Production |
Manufacturer: | International Harvester
|
Type: | Row-Crop tractor
|
Original price: | $21,700 (1976)
|
International Harvester Hydro 100 Power |
Drawbar (claimed): | 80 hp 59.7 kW
|
PTO (claimed): | 104.17 hp 77.7 kW
|
Drawbar (tested): | 78.31 hp 58.4 kW
|
PTO (tested): | 104.17 hp 77.7 kW
|
International Harvester Hydro 100 Engine |
Mechanical |
Chassis: | 4x2 2WD
|
Steering: | hydrostatic power
|
Brakes: | differential hydraulic dry disc
|
Cab: | Open operator station. Two-post ROPS and cab available.
|
Transmission: | hydrostatic
|
Photos |
| International Harvester Hydro 100 photos... |
Hydraulics |
Pump flow: | 12 gpm 45.4 lpm
|
Tractor hitch |
Rear Type: | II
|
Power Take-off (PTO) |
Rear RPM: | 540/1000
|
Dimensions & Tires |
Wheelbase: | 104.8 inches 266 cm
|
Weight: | 12,130 lbs 5502 kg
|
Front tire: | 10.00-16
|
Rear tire: | 18.4-34
|
Full dimensions and tires ... |
Hydro 100 Serial Numbers |
Location: | Hydro drive housing, left side
|
1973: | 7501
|
1974: | 7727
|
1975: | 10915
|
1976: | 12434
|
how to read serial numbers...
| |
