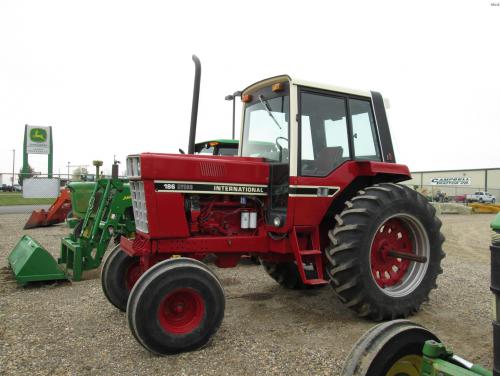

International Harvester Hydro 186 Tractors
 |
|
Power: 116 hp[P]
Date of manufacture : 1976 - 1981 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Row-Crop tractor
|
| Factory: | Rock Island, Illinois, USA
|
| Original price: | $33,900 (1981)
|
| Variants |
| Hydro 186 Hi-Clear: | high clearance
|
| International Harvester Hydro 186 Power |
| Drawbar (tested): | 79.83 hp
59.5 kW
|
| PTO (tested): | 105.02 hp
78.3 kW
|
| International Harvester Hydro 186 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD (optional)
|
| Steering: | power assist
|
| Brakes: | hydraulic disc
|
| Cab: | Cab standard
|
| Photos |
| | International Harvester Hydro 186 photos... |
| Capacity |
| Fuel: | 50 gal
189.3 L
|
| | 22 gal
83.3 L (auxiliary)
|
| Hydraulic system: | 28.5 gal
107.9 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 28.5 gal
107.9 L
|
| Valves: | 2
|
| Pump flow: | 12 gpm
45.4 lpm
|
| Tractor hitch |
| Rear Type: | 2
|
| Rear lift (at 24"/610mm): | 6660 lbs
3020 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 105 inches
266 cm
|
| | 101 inches
256 cm (tricycle front)
|
| | 99 inches
251 cm (4WD)
|
| | 106 inches
269 cm (Hi-Clear)
|
| Weight: | 11500 to 13135 pounds
|
| Front tire: | 10.00-16
|
| Rear tire: | 18.4-34
|
| Full dimensions and tires ... |
| Hydro 186 Serial Numbers |
| Location: | Rear axle.
|
| 1976: | 8601
|
| 1977: | 8813
|
| 1978: | 9806
|
| 1979: | 10626
|
| 1980: | 11465
|
| 1981: | 12279
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 42
|
| | 61 (with cab)
|
| Batteries: | 2
|
| Battery CCA: | 470
|
| Battery volts: | 12
|
|
