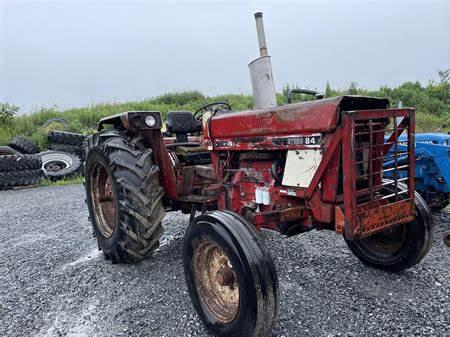

International Harvester Hydro 84 Tractors
 |
|
Power: 65 hp[P]
Date of manufacture : 1978 - 1983 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Utility tractor
|
| Factory: | Doncaster, England
|
| Original price: | $23,000 (1984 )
|
| International Harvester Hydro 84 Power |
| Drawbar (claimed): | 43.6 hp
32.5 kW
|
| PTO (claimed): | 58.7 hp
43.8 kW
|
| Drawbar (tested): | 42.90 hp
32.0 kW
|
| PTO (tested): | 58.73 hp
43.8 kW
|
| International Harvester Hydro 84 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | independent hydraulic wet disc
|
| Cab: | Open operator station. ROPS canopy or cab optional.
|
| Transmission: | hydrostatic
|
| Photos |
| | International Harvester Hydro 84 photos... |
| Capacity |
| Fuel: | 20 gal
75.7 L
|
| Hydraulic system: | 16.5 gal
62.5 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 16.5 gal
62.5 L
|
| Valves: | 1 or 2
|
| Total flow: | 13 gpm
49.2 lpm
|
| | 15.4 gpm
58.3 lpm *Optional
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | position and draft control
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | hydraulic wet disc
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| Utility Wheelbase: | 88 inches
223 cm
|
| Row-crop Wheelbase: | 84.5 inches
214 cm
|
| 4WD Wheelbase: | 85.2 inches
216 cm
|
| Low-profile Wheelbase: | 83.75 inches
212 cm
|
| Weight: | 5620 to 6765 pounds
|
| Front tire: | 7.50-16
|
| Rear tire: | 16.9-30
|
| Full dimensions and tires ... |
| Hydro 84 Serial Numbers |
| Location: | Front axle on right side of tractor.
|
| 1978: | 501
|
| 1979: | 787
|
| 1980: | 1481
|
| 1981: | 5564
|
| 1982: | 6014
|
| 1983: | 8069
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
