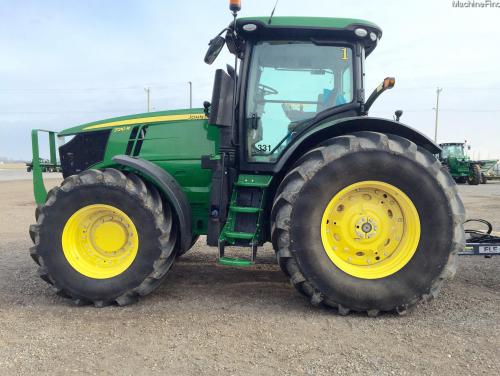

John Deere 7210R Tractors
 |
|
Power: 210 hp
Date of manufacture : 2014 - 2019 |
| Production |
| Manufacturer: | John Deere
|
| Type: | Row-Crop tractor
|
| Factory: | Waterloo, Iowa, USA
|
| Original price: | $201,727 (2014 e23 )
|
| John Deere 7210R Power |
| Engine (gross): | 210 hp
156.6 kW
|
| Engine (max): | 231 hp
172.3 kW
|
| PTO (claimed): | 170 hp
126.8 kW
|
| Drawbar (tested): | 170.77 hp
127.3 kW
|
| PTO (tested): | 206.11 hp
153.7 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Final drives: | inboard planetary
|
| Differential lock: | full-locking electro-hydraulic rear
|
| | limited slip front
|
| | electro-hydraulic front (optional)
|
| Steering: | hydrostatic power
|
| | ActiveCommand Steering optional
|
| Brakes: | hydraulic wet disc
|
| Trailer brakes: | hydraulic (optional)
|
| | dual-line air (optional)
|
| Cab: | CommandView III cab standard with air-conditioning. Optional premium cab with seat or cab suspension, right-hand windshield wiper, and electric mirror control.
|
| Transmissions: | 20-speed power shift
|
| | 23-speed full power shift
|
| | infinitely variable transmission
|
| Photos |
| | John Deere 7210R photos... |
| Capacity |
| Fuel: | 133 gal
503.4 L (CQ)
|
| | 125 gal
473.1 L (e23)
|
| | 137 gal
518.5 L (IVT)
|
| Exhaust fluid (DEF): | 6.8 gal
25.7 L
|
| Hydraulic system: | 17.2 gal
65.1 L
|
| | 5.3 gal
20.1 L (optional aux tank)
|
| Hydraulics |
| Type: | closed-center pressure and flow compensated
|
| Capacity: | 17.2 gal
65.1 L
|
| | 5.3 gal
20.1 L (optional aux tank)
|
| Pressure: | 2958 psi
204.0 bar
|
| Rear valves: | 3 to 6
|
| Mid valves: | 0 to 3
|
| Front valves: | 0 to 2
|
| Pump flow: | 32 gpm
121.1 lpm
|
| | 43 gpm
162.8 lpm (optional)
|
| | 59 gpm
223.3 lpm (optional)
|
| Rear SCV flow: | 35 gpm
132.5 lpm
|
| Front SCV flow: | 33 gpm
124.9 lpm
|
| Tractor hitch |
| Rear Type: | III/IIIN
|
| Control: | electro-hydraulic draft sensing
|
| Rear lift: | 16093 lbs
7299 kg
|
| | 22500 lbs
10206 kg (optional)
|
| Rear Arms: | hydraulic center link (optional)
|
| Front Hitch: | IIIN (optional)
|
| Front lift (at ends): | 11464 lbs
5200 kg
|
| Drawbar: | Cat. 3 adjustable swinging drawbar. Optional heavy-duty support.
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000 (1.75)
|
| | 540/1000 (1.375)
|
| Front PTO: | independent
|
| Front RPM: | 1000 (1.375)
|
| | 1000 (1.75)
|
| Dimensions & Tires |
| Wheelbase: | 115 inches
292 cm
|
| Weight: | 26335 lbs
11945 kg
|
| Front tire: | 380/80R38
|
| Rear tire: | 480/80R50
|
| 7210R Serial Numbers |
| Location: | Right side of tractor frame above front axle.
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 200
|
| | 240 (optional)
|
| Batteries: | 2
|
| Battery CCA: | 925
|
| Battery volts: | 12
|
| Battery Group: | 31
|
|
