John Deere 7210 Tractors

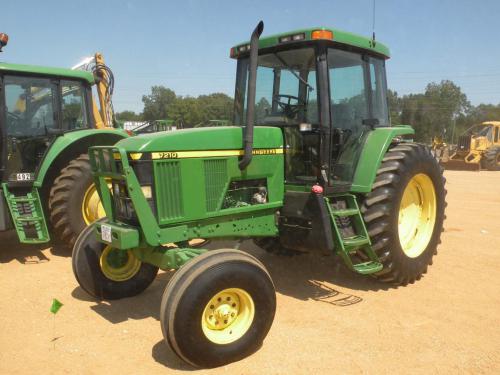

John Deere 7210
Power: 110 hp
Date of manufacture :
1997 - 2002
Production
Manufacturer:John Deere
Type:Row-Crop tractor
Factory:Waterloo, Iowa, USA
Original price:$52,000 (1999 )
Variants
7210:row-crop
7210 Hi-Crop:high clearance
John Deere 7210 Power
Engine:110 hp
82.0 kW
PTO (claimed):95 hp
70.8 kW
Drawbar (tested):84.71 hp
63.2 kW
PTO (tested):98.28 hp
73.3 kW
John Deere 7210 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Final drives:inboard planetary
Differential lock:electro-hydraulic
Steering:power
Brakes:hydraulic wet disc
Cab:ComfortGard cab standard.
Transmissions:12-speed fully synchronized
 16-speed partial power shift
 20-speed partial power shift
 28-speed partial power shift
Photos
John Deere 7210 photos...
Capacity
Fuel:50 gal
189.3 L
2WD Hydraulic system:15 gal
56.8 L
4WD Hydraulic system:17 gal
64.3 L
 16 gal
60.6 L (2WD creeper)
 18 gal
68.1 L (4WD creeper)
Hydraulics
Type:closed center pressure flow compensated (PFC)
2WD Capacity:15 gal
56.8 L
4WD Capacity:17 gal
64.3 L
 16 gal
60.6 L (2WD creeper)
 18 gal
68.1 L (4WD creeper)
Pressure:2900 psi
200.0 bar
Valves:2 to 4
Pump flow:16 gpm
60.6 lpm
 26 gpm
98.4 lpm *Optional
Tractor hitch
Rear Type:IIIN/II
2WD Rear lift:7400 lbs
3356 kg
4WD Rear lift:8390 lbs
3805 kg
Front Hitch:IIIN/II*Optional
Front lift:7700 lbs
3492 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000 (1.375)
Dimensions & Tires
2WD Wheelbase:112.1 inches
284 cm
4WD Wheelbase:103.3 inches
262 cm
Weight:11491 to 12785 pounds
Front tire:11.00-16
Rear tire:18.4-38
Full dimensions and tires ...
7210 Serial Numbers
Location:Serial number plate on the right side of the tractor frame, above the front axle.
photo of 7210 serial number

1997:1001
1998:10001
1999:20001
2000:30001
2001:50001
2002:70004

how to read serial numbers...

Electrical
Ground:negative
Charging amps:120
Battery CCA:925
Battery volts:12
Battery Group:31
