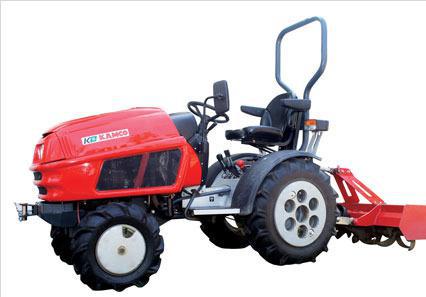

KAMCO TeraTRAC 4W Tractors
 |
|
Power: 15 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | KAMCO
|
| Type: | Compact Utility tractor
|
| Factory: | India
|
| KAMCO TeraTRAC 4W Power |
| Engine (gross): | 15.4 hp
11.5 kW
|
| PTO (claimed): | 13.4 hp
10.0 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | hydraulic power
|
| Brakes: | wet disc
|
| Cab: | Two-post ROPS.
|
| Transmission: | 4-speed
|
| Hydraulics |
| Pump flow: | 3.17 gpm
12.0 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Control: | position control
|
| Rear lift (at ends): | 674 lbs
305 kg
|
| Rear lift (at 24"/610mm): | 540 lbs
244 kg
|
| Power Take-off (PTO) |
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 48.4 inches
122 cm
|
| Weight: | 1213 lbs
550 kg
|
| Front tire: | 5.00-10
|
| Rear tire: | 6.5-16
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
