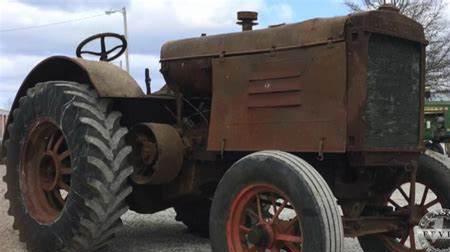

Keck-Gonnerman 15-30 Tractors
 |
|
Power: 16 hp
Date of manufacture : 1920 - 1927 |
| Production |
| Manufacturer: | Keck-Gonnerman
|
| Type: | Standard-tread tractor
|
| Factory: | Mount Vernon, Indiana, USA
|
| Original price: | $1,500 (1920 )
|
| Keck-Gonnerman 15-30 Power |
| Drawbar (claimed): | 30 hp
22.4 kW
|
| Belt (claimed): | 15 hp
11.2 kW
|
| Plows: | 3*14-inch
|
| Keck-Gonnerman 15-30 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Final drives: | spur gear
|
| Steering: | manual
|
| Cab: | Open operator station.
|
| Transmission: | 2-speed gear
|
| Dimensions & Tires |
| Weight: | 6500 lbs
2948 kg
|
| Rear tire: | 61x12
|
| Full dimensions and tires ... |
| Belt Pulley |
| Diameter: | 12 inches
30 cm
|
| Width: | 8 inches
20 cm
|
| RPM: | 650
|
| Speed: | 1004 ft/min
306.02 meters/min
|
|
