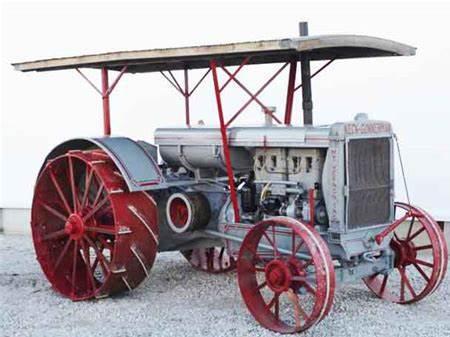

Keck-Gonnerman 12-24 Tractors
|
|
Power: 13 hp
Date of manufacture : 1917 - 1918 |
Production |
Manufacturer: | Keck-Gonnerman
|
Type: | Standard-tread tractor
|
Factory: | Mount Vernon, Indiana, USA
|
Original price: | $1,250 (1918 )
|
Keck-Gonnerman 12-24 Power |
Drawbar (claimed): | 24 hp 17.9 kW
|
Belt (claimed): | 12 hp 8.9 kW
|
Plows: | 3*14-inch
|
Keck-Gonnerman 12-24 Engine |
Mechanical |
Chassis: | 4x2 2WD
|
Final drives: | spur gear
|
Steering: | manual
|
Cab: | Open operator station.
|
Transmission: | 2-speed gear
|
Dimensions & Tires |
Weight: | 6500 lbs 2948 kg
|
Rear tire: | 61x12
|
Full dimensions and tires ... |
Belt Pulley |
Diameter: | 12 inches 30 cm
|
Width: | 8 inches 20 cm
|
RPM: | 650
|
Speed: | 1004 ft/min 306.02 meters/min
|
|
