Kioti LK3054XS Tractors

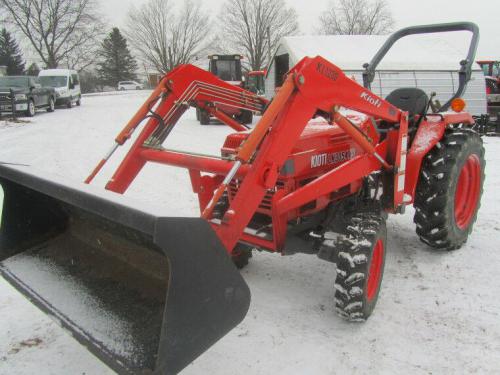

Kioti LK3054XS
Power: 30 hp
Date of manufacture :
2004 - 2007
Production
Manufacturer:Kioti (a part of Daedong)
Type:Compact Utility tractor
Kioti LK3054XS Power
Engine (gross):30.5 hp
22.7 kW
PTO (claimed):24.5 hp
18.3 kW
Kioti LK3054XS Engine
Mechanical
Chassis:4x4 MFWD 4WD
Final drives:mechanical rear
Brakes:wet disc
Cab:Two-post foldable ROPS.
Transmission:8-speed mechanical shuttle
Hydraulics
Type:open center
Rear valves:1*Optional
Total flow:10 gpm
37.9 lpm
Tractor hitch
Rear Type:I
Rear lift (at 24"/610mm):1764 lbs
800 kg
Power Take-off (PTO)
Rear PTO:live*Two-stage clutch
Rear RPM:540/1000 (1.375)
Engine RPM:540@2610
1000@2626
Dimensions & Tires
Wheelbase:64.6 inches
164 cm
Weight:2974 lbs
1349 kg
Front tire:7-14
Rear tire:11.2-24
Electrical
Ground:negative
Battery volts:12
