Navigation: Home > Kioti > NX5510

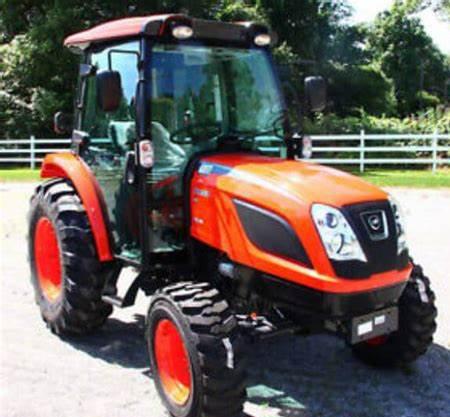

Kioti NX5510 Tractors

Kioti NX5510
Power: 55 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:Kioti (a part of Daedong)
Type:Compact Utility tractor
Kioti NX5510 Power
Engine (gross):55 hp
41.0 kW
Gear PTO (claimed):46 hp
34.3 kW
Hydro PTO (claimed):43.1 hp
32.1 kW
Kioti NX5510 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:rear standard
Steering:hydrostatic power
Brakes:wet discs
Cab:Two-post foldable ROPS. Cab optional with air-conditioning.
Transmissions:24-speed synchro shuttle
 hydrostatic
Hydraulics
Type:open center gear pump
Valves:0 to 2
Gear Pump flow:16.5 gpm
62.5 lpm
Hydro Pump flow:17.9 gpm
67.8 lpm
Tractor hitch
Rear Type:II/I
Control:position and draft control
Rear lift (at 24"/610mm):3177 lbs
1441 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Mid PTO:optional
Mid RPM:2000
Dimensions & Tires
Wheelbase:75.6 inches
192 cm
Weight:4211 to 4579 pounds
Front tire:9.5-16
Rear tire:13.6-28
Electrical
Ground:negative
Battery volts:12
