LS J2023H Tractors

LS J2023H
Power: 23 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:LS
Type:Compact Utility tractor
LS J2023H Power
Engine (gross):23 hp
17.2 kW
PTO (claimed):17.5 hp
13.0 kW
LS J2023H Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post foldable ROPS.
Transmission:hydrostatic
Photos

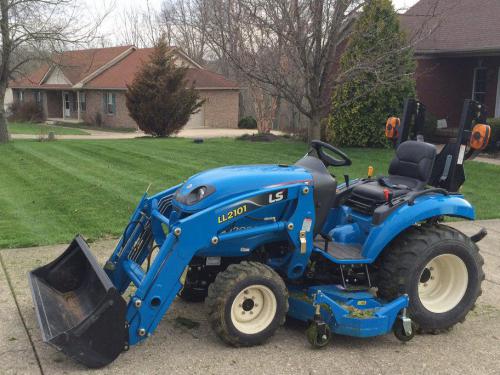

LS J2023H photos...
Hydraulics
Pump flow:6.4 gpm
24.2 lpm
Total flow:9.2 gpm
34.8 lpm
Steering flow:2.8 gpm
10.6 lpm
Tractor hitch
Rear Type:I
Rear lift:1433 lbs
650 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Mid PTO:independent
Mid RPM:2000
Dimensions & Tires
Wheelbase:59 inches
149 cm
Weight:1565 lbs
709 kg
Electrical
Ground:negative
Charging system:alternator
Charging amps:50
Battery volts:12
