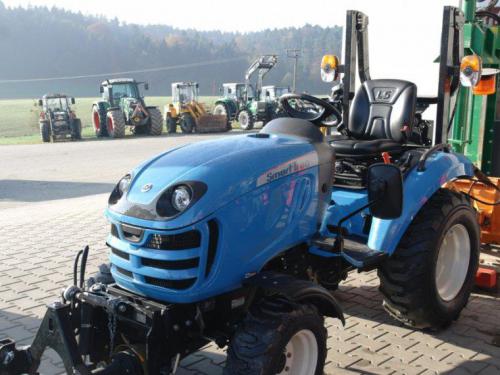

LS J23 Tractors

LS J23
Power: 23 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:LS
Type:Compact Utility tractor
LS J23 Power
Engine:23 hp
17.2 kW
Gear PTO (claimed):18.9 hp
14.1 kW
Hydro PTO (claimed):17.3 hp
12.9 kW
LS J23 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Cab:ROPS.
Transmissions:6-speed gear
 hydrostatic
Hydraulics
Rear valves:1
Hydro Pump flow:5.8 gpm
22.0 lpm
Gear Pump flow:6.9 gpm
26.1 lpm
Hydro Total flow:8.6 gpm
32.6 lpm
Gear Total flow:8 gpm
30.3 lpm
Hydro Steering flow:2.7 gpm
10.2 lpm
Gear Steering flow:1.1 gpm
4.2 lpm
Tractor hitch
Rear Type:I
Control:position control
Rear lift:1433 lbs
650 kg
Power Take-off (PTO)
Rear PTO:transmission
 independent*Optional with gear transmission, standard on hydrostatic
Rear RPM:540
Mid RPM:2000
Dimensions & Tires
Wheelbase:59.1 inches
150 cm
Weight:1830 lbs
830 kg
Front tire:6-12
Rear tire:9.5-16
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
