Navigation: Home > LS > J2030H

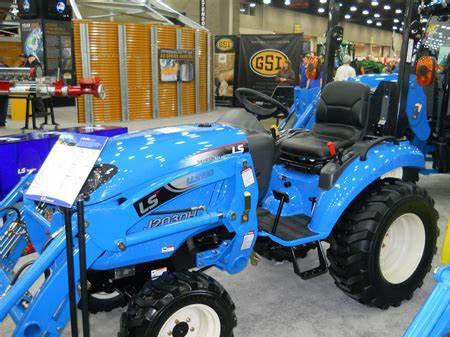

LS J2030H Tractors

LS J2030H
Power: 27 hp
Date of manufacture :
2009 - 2019
Production
Manufacturer:LS
Type:Compact Utility tractor
LS J2030H Power
Engine (gross):27 hp
20.1 kW
PTO (claimed):20.5 hp
15.3 kW
LS J2030H Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post foldable ROPS.
Transmission:hydrostatic
Hydraulics
Pump flow:5.9 gpm
22.3 lpm
Total flow:8.6 gpm
32.6 lpm
Steering flow:2.7 gpm
10.2 lpm
Tractor hitch
Rear Type:I
Rear lift:1433 lbs
650 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Mid PTO:independent (optional)
Mid RPM:2000
Dimensions & Tires
Wheelbase:59 inches
149 cm
Weight:1587 lbs
719 kg
Electrical
Ground:negative
Charging system:alternator
Charging amps:50
Battery volts:12
