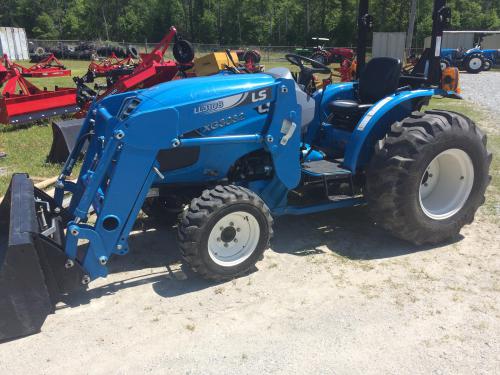

LS XG3032 Tractors

LS XG3032
Power: 32 hp
Date of manufacture :
2015 - 2018
Production
Manufacturer:LS
Type:Compact Utility tractor
LS XG3032 Power
Engine (gross):32.2 hp
24.0 kW
Gear PTO (claimed):27.4 hp
20.4 kW
Hydro PTO (claimed):25.8 hp
19.2 kW
LS XG3032 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:power
Brakes:wet disc
Cab:Two-post folding ROPS.
Transmissions:12-speed sync shuttle
 hydrostatic
Hydraulics
Type:open center
Pump flow:8.2 gpm
31.0 lpm
Gear Total flow:12.4 gpm
46.9 lpm
Hydro Total flow:13.4 gpm
50.7 lpm
Gear Steering flow:4.2 gpm
15.9 lpm
Hydro Steering flow:5.2 gpm
19.7 lpm
Tractor hitch
Rear Type:I
Rear lift (at ends):1808 lbs
820 kg
Rear lift (at 24"/610mm):1433 lbs
650 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:wet disc
Rear RPM:540 (1.375)
Engine RPM:540@2509
Dimensions & Tires
Wheelbase:67.5 inches
171 cm
Weight:2855 to 2882 pounds
Front tire:7-14
Rear tire:11.2-24
Electrical
Charging amps:85
Battery
Number:1
Volts:12
