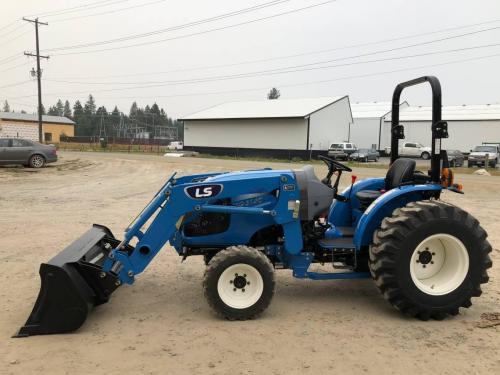

LS XG3140 Tractors

LS XG3140
Power: 40 hp
Date of manufacture :
2016 - 2019
Production
Manufacturer:LS
Type:Compact Utility tractor
LS XG3140 Power
Engine (gross):40 hp
29.8 kW
Gear PTO (claimed):34.4 hp
25.7 kW
Hydro PTO (claimed):32 hp
23.9 kW
LS XG3140 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:power
Brakes:wet disc
Cab:Two-post folding ROPS.
Transmissions:12-speed sync shuttle
 hydrostatic
Hydraulics
Type:open center
Pump flow:8.5 gpm
32.2 lpm
Gear Total flow:12.3 gpm
46.6 lpm
Hydro Total flow:13.7 gpm
51.9 lpm
Gear Steering flow:4.1 gpm
15.5 lpm
Hydro Steering flow:5.5 gpm
20.8 lpm
Tractor hitch
Rear Type:I
Rear lift (at ends):1808 lbs
820 kg
Rear lift (at 24"/610mm):1433 lbs
650 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:wet disc
Rear RPM:540 (1.375)
Engine RPM:540@2509
Dimensions & Tires
Wheelbase:69 inches
175 cm
Weight:2884 lbs
1308 kg
Front tire:7-14
Rear tire:11.2-24
Electrical
Charging amps:70
Battery volts:12
