LS XR4046H Tractors

LS XR4046H
Power: 46 hp
Date of manufacture :
2013 - 2018
Production
Manufacturer:LS
Type:Compact Utility tractor
LS XR4046H Power
Engine (gross):46 hp
34.3 kW
PTO (claimed):35.4 hp
26.4 kW
LS XR4046H Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post foldable ROPS. Cab optional with air-conditioning.
Transmission:hydrostatic

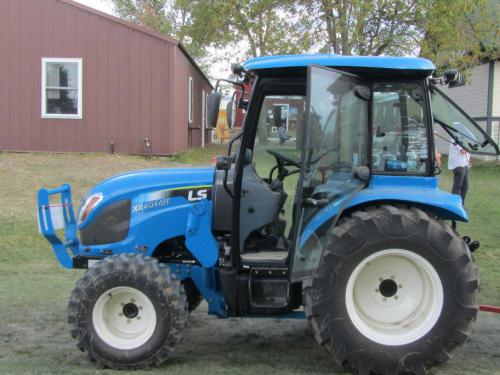

Photos
LS XR4046H photos...
Hydraulics
Pump flow:8.2 gpm
31.0 lpm
Total flow:13.7 gpm
51.9 lpm
Steering flow:5.5 gpm
20.8 lpm
Tractor hitch
Rear Type:I
Control:position and draft control
Rear lift:2756 lbs
1250 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Mid PTO:independent (optional)
Mid RPM:2000
Dimensions & Tires
Wheelbase:69.4 inches
176 cm
Weight:3870 to 4330 pounds
Front tire:9.5-16
Rear tire:13.6-24
Electrical
Ground:negative
Charging system:alternator
Charging amps:85
Battery volts:12
