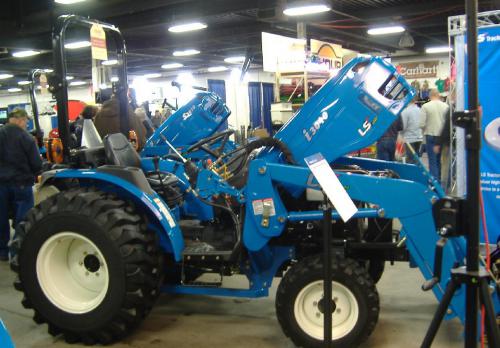

LS i3040 Tractors

LS i3040
Power: 38 hp
Date of manufacture :
2009 - 2010
Production
Manufacturer:LS
Type:Compact Utility tractor
Variants
i3040:shuttle
i3040H:hydrostatic
LS i3040 Power
Engine (gross):38.5 hp
28.7 kW
PTO (claimed):31 hp
23.1 kW
LS i3040 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post ROPS.
Transmission:12-speed synchro shuttle
Hydraulics
Pump flow:8.6 gpm
32.6 lpm
Total flow:12.9 gpm
48.8 lpm
Steering flow:4.3 gpm
16.3 lpm
Tractor hitch
Rear Type:I
Control:position and draft control
Rear lift:1808 lbs
820 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Mid PTO:optional
Mid RPM:2000
Dimensions & Tires
Wheelbase:65.4 inches
166 cm
Weight:2780 lbs
1261 kg
Front tire:7-16
Rear tire:12.4-24
Electrical
Ground:negative
Charging system:alternator
Charging amps:50
Battery volts:12
