LS i38 Tractors

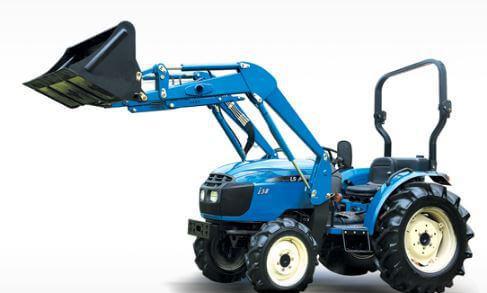

LS i38
Power: 38 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:LS
Type:Compact Utility tractor
LS i38 Power
Engine:38 hp
28.3 kW
Gear PTO (claimed):32.2 hp
24.0 kW
Hydro PTO (claimed):30.3 hp
22.6 kW
LS i38 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Cab:ROPS.
Transmissions:12-speed synchronized shuttle
 hydrostatic
Hydraulics
Rear valves:1 or 2
Front valves:2
Pump flow:7.1 gpm
26.9 lpm
Total flow:10.6 gpm
40.1 lpm
Steering flow:3.5 gpm
13.2 lpm
Tractor hitch
Rear Type:I
Control:position and draft control
Rear lift:1808 lbs
820 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540
Mid PTO:independent*Optional
Mid RPM:2000
Dimensions & Tires
Wheelbase:65.4 inches
166 cm
Weight:3097 lbs
1404 kg
Front tire:7-16
Rear tire:12.4-24
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
