| Production |
| Distributor: | Mahindra
|
| Manufacturer: | Mitsubishi
|
| Type: | Compact Utility tractor
|
| Original price: | $15,750 (2013 shuttle )
|
| Original price: | $16,810 (2013 hydro )
|

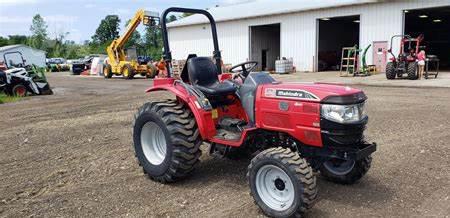

| Mahindra 3016 Power |
| Engine: | 28 hp
20.9 kW
|
| PTO (claimed): | 23 hp
17.2 kW (gear)
|
| | 21.1 hp
15.7 kW (hydro)
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | wet disc
|
| Cab: | Two-post foldable ROPS.
|
| Transmissions: | 8-speed synchronized shuttle
|
| | hydrostatic
|
| Hydraulics |
| Type: | open center
|
| Valves: | 1 (optional)
|
| Pump flow: | 7.8 gpm
29.5 lpm
|
| Steering flow: | 3.4 gpm
12.9 lpm
|
| Tractor hitch |
| Rear Type: | 1
|
| Control: | position control
|
| Rear lift: | 2,646 lbs
1200 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent (gear)
|
| | live (hydro)
|
| Rear RPM: | 540
|
| Engine RPM: | 540@2376
|
| Mid PTO: | optional
|
| Mid RPM: | 2000
|
| Engine RPM: | 2000@2525
|
| Dimensions & Tires |
| Weight: | 2437 to 2459 pounds
|
| Front tire: | 7x16
|
| Rear tire: | 11.2x24
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 50
|
| Battery volts: | 12
|
| Battery AH: | 46
|
|
