| Production |
| Manufacturer: | Mahindra
|
| Type: | Utility tractor
|
| Factory: | Maharashtra, India
|
| Original price: | $10,829 (2008 )
|
| Mahindra 3325 Power |
| Engine: | 35 hp
26.1 kW
|
| PTO (claimed): | 30 hp
22.4 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual recirculating ball
|
| Brakes: | dry disc
|
| Cab: | Two-post folding ROPS.
|
| Transmission: | 8-speed sliding mesh
|
| Photos |

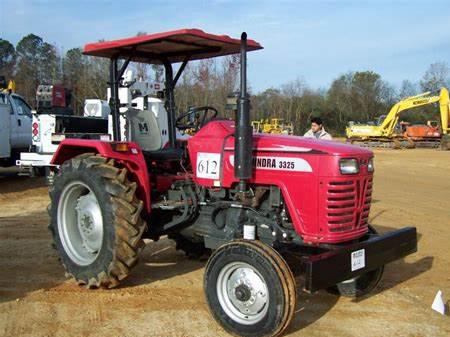

| | Mahindra 3325 photos... |
| Hydraulics |
| Type: | open center
|
| Pump flow: | 8.3 gpm
31.4 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Control: | position and draft control
|
| Rear lift: | 3525 lbs
1598 kg
|
| Power Take-off (PTO) |
| Rear PTO: | transmission
|
| Clutch: | over-running
|
| Rear RPM: | 540
|
| Engine RPM: | 540@1980
|
| Dimensions & Tires |
| Weight: | 3990 lbs
1809 kg
|
| Front tire: | 6x16
|
| Rear tire: | 12.4x28
|
| Full dimensions and tires ... |
| 3325 Serial Numbers |
| Location: | Serial number plate on the left side of the operator's platform, above the left floor board.
|
photo of 3325 serial number
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 36
|
| Charging volts: | 12
|
| Battery volts: | 12
|
| Battery AH: | 96
|
|
