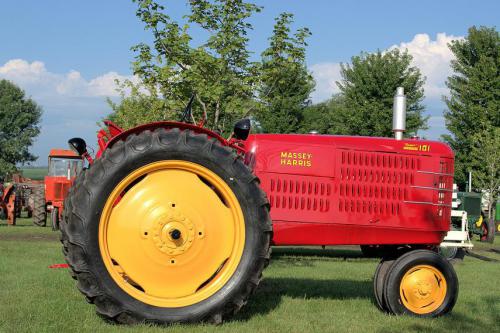

Massey-Harris 101 Super Tractors
 |
|
Power: 40 hp[P]
Date of manufacture : 1938 - 1942 |
| Production |
| Manufacturer: | Massey-Harris
|
| Type: | Row-Crop tractor
|
| Total built: | 8,647
|
| Original price: | $1,700 (1946)
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual
|
| Brakes: | mechanical internal expanding
|
| Cab: | Open operator station.
|
| Transmission: | 4-speed gear
|
| Photos |
| | Massey-Harris 101 Super photos... |
| Power Take-off (PTO) |
| Rear RPM: | 540
|
| Dimensions & Tires |
| Weight: | 3865 lbs
1753 kg
|
| Front tire: | 5.00-15
|
| Rear tire: | 11-38
|
| Full dimensions and tires ... |
| 101 Super Serial Numbers |
| Location: | Serial number on the tractor frame, rear-left side near the transmission case.
|
photo of 101 Super serial number
| | 1938: | 255001
|
| 1939: | 256085
|
| 1940: | 257281
|
| 1941: | 258769
|
| 1942: | 259762
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 13.25 inches
33 cm
|
| Width: | 6.25 inches
15 cm
|
| RPM: | 833
|
|
