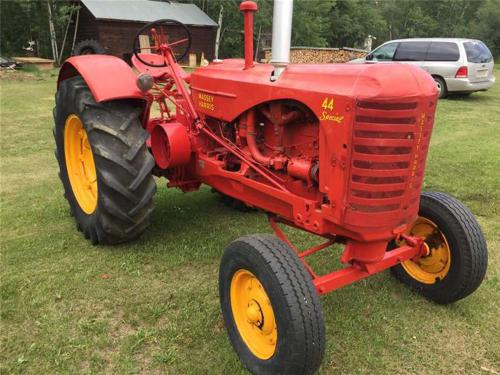

Massey-Harris 44 Special Tractors
 |
|
Power: 40 hp
Date of manufacture : 1953 - 1955 |
| Production |
| Manufacturer: | Massey-Harris
|
| Type: | Row-Crop tractor
|
| Factory: | Racine, Wisconsin, USA
|
| Mechanical |
| Steering: | manual worm-and-sector
|
| Brakes: | differential mechanical drum
|
| Cab: | Open operator station.
|
| Transmission: | 5-speed unsynchronized gear
|
| Photos |
| | Massey-Harris 44 Special photos... |
| Capacity |
| Fuel: | 23 gal
87.1 L (gas)
|
| | 19 gal
71.9 L (diesel)
|
| | 27.2 gal
103.0 L (LP-gas)
|
| Hydraulic system: | 1.75 gal
6.6 L
|
| Hydraulics |
| Capacity: | 1.75 gal
6.6 L
|
| Pressure: | 1050 psi
72.4 bar
|
| Total flow: | 7.5 gpm
28.4 lpm
|
| Tractor hitch |
| Type: | Massey Hitch-All
|
| Power Take-off (PTO) |
| Rear PTO: | live
|
| Rear RPM: | 534
|
| Engine RPM: | 534@1350
|
| Dimensions & Tires |
| Wheelbase: | 88 inches
223 cm
|
| Front tire: | 6.50x16
|
| Rear tire: | 11-38
|
| Full dimensions and tires ... |
| 44 Special Serial Numbers |
| Location: | Serial number plate on the side of the tractor's main frame, just ahead of the operator platform. May be on left or right.
|
| 1953: | 50001
|
| 1954: | 51364
|
| 1955: | 58067
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 13.5 inches
34 cm
|
| Width: | 6 inches
15 cm
|
| RPM: | 863
|
| Speed: | 3050 ft/min
929.64 meters/min
|
|
