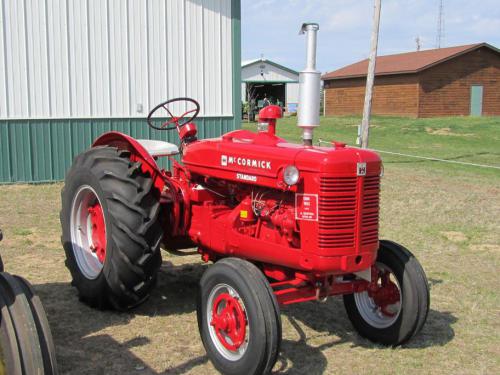

McCormick-Deering W-4 Tractors
 |
|
Power: 27 hp[B]
Date of manufacture : 1939 - 1952 |
| Production |
| Manufacturer: | McCormick-Deering (a part of International Harvester)
|
| Type: | Standard-tread tractor
|
| Factory: | Rock Island, Illinois, USA
|
| Total built: | 24,377
|
| Original price: | $1,900
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual
|
| Brakes: | differential mechanical external contracting band
|
| Cab: | Open operator station.
|
| Transmission: | 5-speed sliding gear
|
| Photos |
| | McCormick-Deering W-4 photos... |
| Power Take-off (PTO) |
| Rear PTO: | transmission
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 66.75 inches
169 cm
|
| Weight: | 3050 lbs
1383 kg
|
| Front tire: | 5.50-16
|
| Rear tire: | 12-26
|
| Full dimensions and tires ... |
| W-4 Serial Numbers |
| Location: | Left side of tractor, on clutch housing.
|
photo of W-4 serial number
| | 1940: | WBH501
|
| 1941: | WBH943
|
| 1942: | WBH4056
|
| 1943: | WBH5693
|
| 1944: | WBH7593
|
| 1945: | WBH11171
|
| 1946: | WBH13934
|
| 1947: | WBH16022
|
| 1948: | WBH18880
|
| 1949: | WBH21912
|
| 1950: | WBH24470
|
| 1951: | WBH28167
|
| 1952: | WBH31214
|
| 1953: | WBH33067
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 9.75 inches
24 cm
|
| Width: | 7.50 inches
19 cm
|
| RPM: | 1019
|
| Speed: | 2601 ft/min
792.78 meters/min
|
| Electrical |
| Ground: | positive
|
| Charging system: | generator
|
| Charging amps: | 11
|
| Battery volts: | 6
|
|
